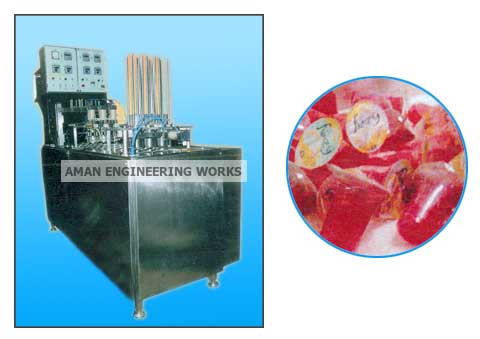

Mineral Water Cup Packaging Machine

Model CNR3
Three Head in this Machine. This Machine is conveyor type cup filling & sealing Machine. This Machine is pneumatic cum mechanical working RINSING FACILITY AVAILABLE IN THIS MACHINE

Cup manual keep (Empty) an d after sealing pickup by hand

Features -
• Easy to operate
• Easy to maintain
• Rinsing Available

Applications -
• Mineral water • Curd • Yoghurt • Lassi • Juice • Non Viscusn Products

Technical Specification

Machine Capacity 2300 - 2400 Cups / Hr
Cup Size 200 ml
No. of Station 5
Hopper Capacity 30 to 40 Ltr.
Power Supply 3 Phase 1 Hpx 1440 RPM 415V, 50Hz.
Heater 16mm x L 90mm (230v x 1500w)
Temperature Controller 0 to 4000C (3 Nos.)
Filling Timer 3 Nos.
Products Contact Parts S. S. 304
Machine Dimension L x W x H / 1905 x 650 x 915mm
