Glass Filling Machine

Glass Filling Machine

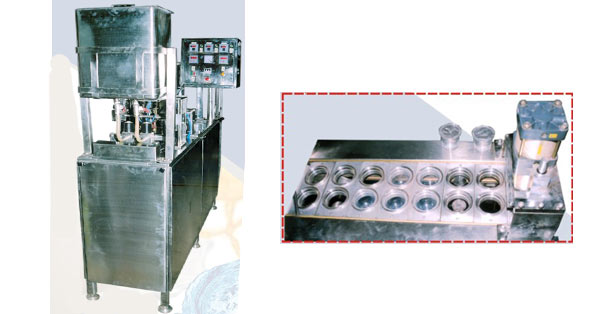

Two Head in this Machine. This Machine is conveyor type cup filling & sealing Machine. This Machine is pneumatic cum mechanical working RINSING FACILITY AVAILABLE IN THIS MACHINE

Cup manual keep (Empty) and after sealing pickup by hand

Feature -
• Easy to operate • Easy to maintain • Rinsing Available

Machine Capacity 1500 - 1600 Cups / Hr
Cup Size 50ml to 200 ml
No. of Station 5
Hopper Capacity 30 to 40 Ltr.
Power Supply 3 Phase 1 Hpx 1440 RPM 415V, 50Hz.
Heater 16mm x L 90mm (230v x 1500w)
Temperature Controller 0 to 4000C (2 Nos.)
Filling Timer 2 Nos.
Products Contact Parts S. S. 304
Machine Dimension L x W x H 1905 x 515 x 915mm
Worm Reduction Gear Box Vacuum 1/2"
Send Enquiry   Call Us

Application -
• Mineral water
• Curd
• Yoghurt
• Lassi • Juice
• Non Viscous Products
